Intext Louvers : Advanced Ventilation and Architectural Screening for Modern Buildings
For over three decades, Intext has been engineering façade solutions that combine durability, aesthetics and performance. Our louver systems are designed to deliver controlled ventilation, filtered daylight and façade enhancement across residential, commercial and industrial projects in Eastern India.
Why Louvers Matter in Architecture
Louvers are essential for:
- Natural ventilation
- Reduction of heat and glare
- Enhancing privacy
- Protecting service shafts and ducts
- Reducing rain penetration
- Adding depth and rhythm to exteriors
A well-designed louver elevates both performance and aesthetics while contributing to energy-efficient building design.
Our Louver Solutions

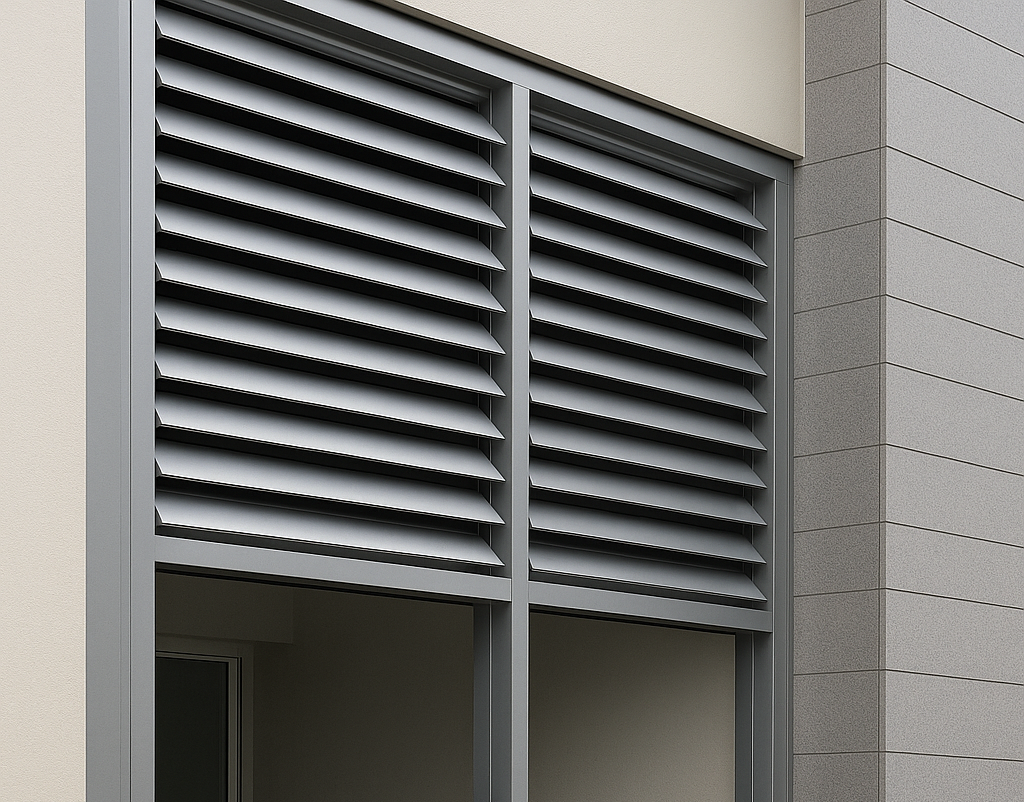

1. Aluminium Louvers
Our aluminium louvers are engineered for long-term performance in demanding weather conditions.
Key Features
- Fabricated from high-grade extruded aluminium
- Powder-coated or anodized finishes
- Custom blade sizes: 100 mm (4″), 140 mm (5.5″) or as required
- Options for fixed or adjustable slats
- Integrated safety grill options
- Vertical or horizontal installation
- Minimal maintenance and high corrosion resistance
Where They Are Used
- Façade screens
- Parking ventilation
- Plant rooms and service areas
- Balcony privacy panels
- Industrial and commercial buildings
2. uPVC Duct Louvers (Intext Ducter)
Developed by Intext as a specialised solution for building ducts and service shafts.
Product Highlights
- Made from UV-stabilised uPVC
- Moisture-resistant and non-corrosive
- Lightweight yet structurally strong
- Designed for a clean, uniform exterior finish
- Ideal for duct covering, shaft concealment and ventilation zones
3. Archivent – Vintage-Style Aluminium Louvers
A premium option inspired by traditional louvered windows, suitable for classical and heritage aesthetics.
Ideal Applications
- Villas and bungalows
- Resorts and boutique hotels
- Heritage structures
- Premium residential projects
Performance & Technical Insight
Ventilation Efficiency
The effectiveness of a louver depends on its free area—the open area available for airflow.
Example:
If a 10 m² panel has a free area of 40%, the effective airflow area is:
10 m² × 0.40 = 4 m²
Approx airflow through natural wind:
Q ≈ A × V
At wind speed of 2 m/s:
4 × 2 = 8 m³/s (≈ 28,800 m³/hr)
This level of airflow is sufficient for parking bays, shafts or plant rooms.
Wind Load & Structural Strength
We size frames, anchors and blade supports using standard dynamic pressure formulas:
q ≈ 0.613 × V² (N/m²)
At 30 m/s wind speed:
q ≈ 552 N/m² (0.55 kN/m²)
This ensures stable performance even in high-wind exposure zones across Eastern India—especially in cities like Kolkata, Digha, Bhubaneswar and coastal regions.
Acoustic & Weather Protection
- Blade geometry reduces direct rain penetration
- Overlapping sections help lower external noise
- Optional back-pan systems improve weather resistance
- Helps reduce glare and manage daylight internally
Where Louvers Are Installed
Residential
Balconies, shafts, privacy panels, ventilation windows.
Commercial
Shopping complexes, office buildings, hospitality projects, parking areas.
Industrial
Plant rooms, generator enclosures, mechanical ventilation zones.
Institutional
Hospitals, schools, government facilities, public infrastructure.
Cities We Serve in Eastern India
We design, fabricate and install louvers across:
Kolkata, Howrah, Durgapur, Asansol, Siliguri, Bardhaman, Guwahati, Bhubaneswar, Cuttack, Rourkela, Patna, Ranchi, Jamshedpur, Dhanbad and nearby regions.
Summary
Intext Louvers are engineered to deliver the ideal mix of ventilation, privacy, sun control and architectural refinement. With advanced aluminium systems, innovative uPVC duct louvers and vintage-inspired designs, we provide tailored solutions for builders, architects, designers and individual homeowners who value quality and longevity.
Clean lines, reliable performance and 30 years of engineering expertise make Intext louvers a trusted choice for modern buildings across Eastern India.
